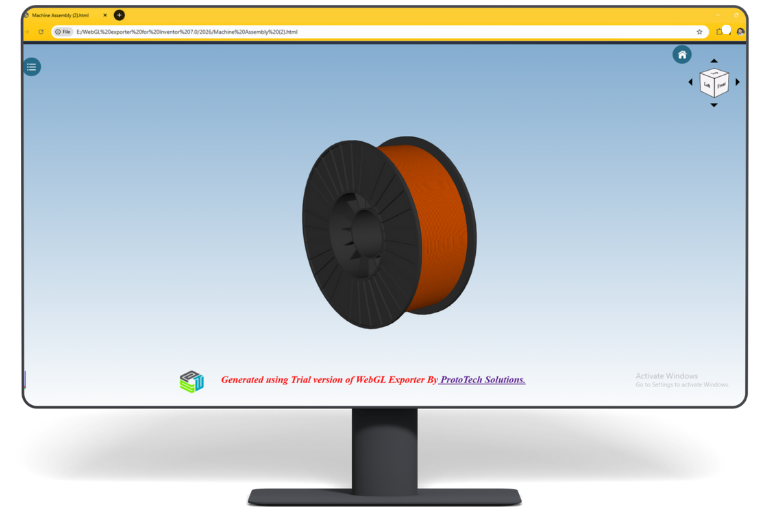

Export interactive

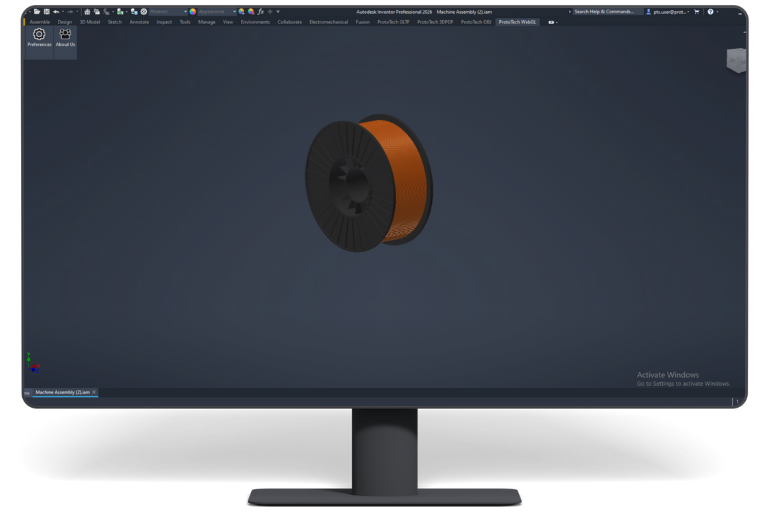

WebGL Exporter
for Inventor
Compatibility
- Operating System: Windows 10 and Windows 11 Only.
- Platforms: Inventor versions 2023–2026.
Note
- Plugin Updates: All updates for the first year are free. The plugin license is perpetual, but if it stops working after the first year and you need updates or support, you’ll need to purchase a renewal.
Our Plugins are also Available on Autodesk Store
Autodesk App Store
Having trouble with your CAD plugin?
DOWNLOAD
Trial
No Credit Card Required.
Locked-License
Single Machine
$140
Locked Licenses by Same User
Two Machine
$260
Two Machine Locked License, by the Same User
Locked-License
Single Floating
$599
Single Floating License
Locked-License
Automation
$599
Automation Licence
Advantages of Automation Licence are:
visualize your designs effortlessly
Features
Mesh Quality
Control to adjust mesh quality from preferences dialog.
Export Annotation
Model annotations are exported into PDF.
Texture Support
Exports tessellated model data along with texture information.
Additional Features
1. Default compression helps to reduce the file.
2. Export 3D Data in template.
Additional
Info.
WebGL Exporter for Inventor Version History
04/11/2025
7.0.25287.3649
Enhancement:
- Added support for Inventor 2026.
05/12/2024
6.0.24240.3537
Enhancement:
- Added support for Inventor 2025.
27/11/2023
6.0.23283.3500
Enhancement:
- Added the VR support.
- World Axes.
- Error Report.
- Watermark.
- Clipping planes.
- Implode/Explode.
- Shades.
18/05/2022
5.1.21246.3359
Enhancement:
- Provided support for Inventor 2023.
27/09/2021
5.1.21246.3359
Enhancement:
- Fixed license issue
20/07/2021
5.0.21160.3328
Enhancement:
- Modified UI.
Fixed:
- Export fail issue when plugin is used on Inventor with languages other than English.
27/05/2020
4.7.20100.3208
Enhancement:
- Smart update functionality
- Added option to export hidden entities
- Added support to Autodesk® Inventor® 2021
15/11/2019
4.6.19310.3141
Fixed:
- Issues in license mechanism.
12/04/2019
4.4.0.0
Enhancement:
- Upgraded licensing system.
08/16/2018
4.3.0.0
Fixed:
- Model tree was getting broken sometimes.
07/17/2018
4.2.0.0
Fixed:
- Incorrect model tree for some part files.
06/15/2018
4.1.0.0
Fixed:
- Positions of some parts were incorrect in HTML file Exported from Inventor 2014.
04/26/2018
4.0.0.0
Enhancement:
- Added support for Autodesk Inventor 2019.
11/08/2017
3.2
Enhancement:
- WebGL file was exported with incorrect initial camera position in some cases.
09/07/2017
3.1
Enhancement:
- Improved the user interface of navigation control, browser tree control and help text control.
07/12/2017
3.0
Enhancement:
- Allow the user to set Preferences and export solids, surfaces and sketches.
- Updated technical support contact details.
03/01/2017
2.5
Enhancement:
- Supported instancing to reduce the export time and file size.
12/20/2016
2.4
Fixed:
- Assemblies with same part names are now properly supported in the assembly tree.
06/01/2016
2.3
Enhancement:
- Inventor 2017 is now supported.
- Improved texture support (Added Texture Scaling).
Please Note: Height and width of texture image should be in power of two (2, 4, 8, 16, 32, 64, 128, 256, 512....) in term of pixels, else tiling of the image will not work. This is a limitation of WebGL.
05/18/2016
2.1
Feature:
- Supports HTML templates. WebGL models will get automatically embedded in the selected template.
- Improved texture support (Added Texture Scaling).
- Export Surfaces.
- Export Mirror objects.
12/24/2015
1.7
Enhancement:
- Export background color (solid, gradient and image). This brings the exported model to almost WYSWYG!
- You can now export selected entities(Bodies from the part file and parts from assembly file). Can be a huge time saver!
- The model tree can now be optionally exported to WebGL. It will appear in a tree view form on an overlaid window.
- You can now control the quality and size of the exported WebGL model. New export option added - Preferences ->Facet Tolerance.
09/16/2015
1.6
Enhancement:
- Greatly simplified license activation process
Please note: Existing customers who have already activated the product will have to contact our support to request for a key for reactivation after installing this update.
04/17/2015
1.5
Enhancement:
- Fixed issue with license activation.
04/17/2015
1.4
Enhancement:
- Supported Inventor version 2016.
02/04/2015
1.3
Enhancement:
- User who has different local settings (e.g. comma character as the decimal separator) can now export valid HTML files.
06/27/2014
1.2
Enhancement:
- Compatible with Autodesk® Inventor® 2015.
- The trial period has changed from 6 months to 5 times.
06/27/2014
1.2
Enhancement:
- Supports exporting Solid bodies.
- Supports exporting wired bodies.
- Supports textures and materials
- Supports face level colors and body level colors.
License Upgrade
Education Discount Enquiry
RHI ALA
"The plugin works perfectly and is very easy to use. The design of the exported machine elements can also be easily adapted so that it fits your corporate design. In the event of a issue, you will receive fast support via email. In addition, the support also offers remote support via the common tools (Skype, Teanviewer) and solves your problem directly. Our experience with the developer is consistently positive."
Anna Bondank
"Netter Supportkontakt. Das Problem wurde schnell gelöst"
Will Wright
EAFab Corporation
"Great Plugin! Bridges the software gap between supplier and client."
What Our Customers Are Saying About Us
