Enhance your design workflow

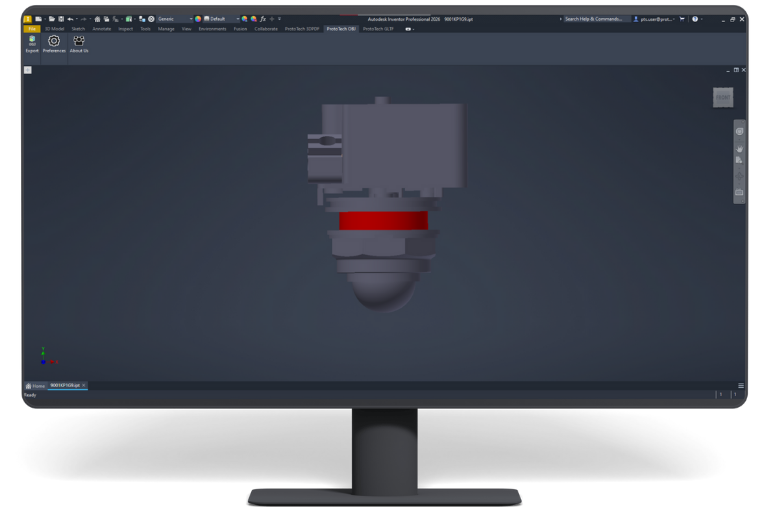

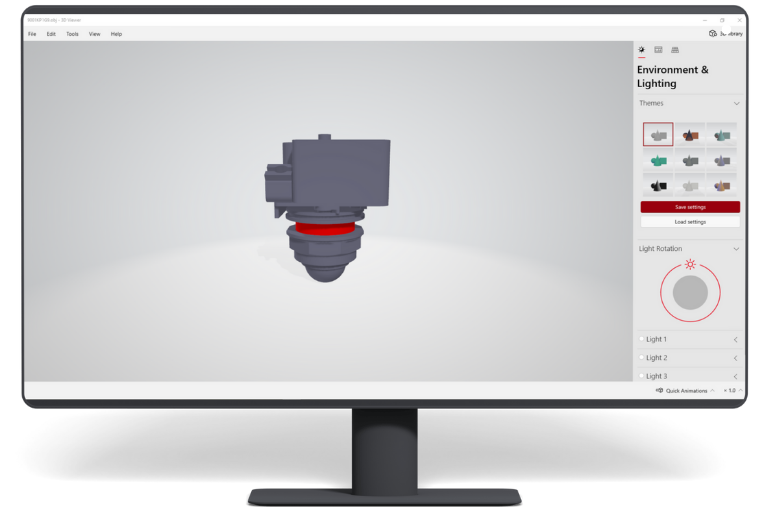

OBJ Exporter
for Inventor
Our Plugins are also Available on Autodesk Store
DOWNLOAD
Trial
No Credit Card Required.
Locked-License
Single Machine
$79
Locked Licenses by Same User
Two Machine
$99
Two Machine Locked License, by the Same User
Locked-License
Single Floating
$499
Single Floating License
Locked-License
Automation
$399
Automation Licence
Advantages of Automation Licence are:
seamless integration
Features
Mesh Quality
Control to adjust mesh quality from preferences dialog.
Encrypt PDF
Password-protect the exported PDF file.
Default Tessellation Quality
Default compression helps to reduce the file.
Template Designer
Embed 3D Model to your existing PDF.
Additional
Info.
OBJ Exporter for Inventor Version History
26/08/2024
6.0.24184.3534
Enhancement:
- Added 2025 support.
- Added Export Unit support.
- Added support for exporting properties in CSV & JSON format.
15/06/2023
5.0.21300.3359
Enhancement:
- Support to Inventor 2024.
18/05/2022
5.0.21300.3359
Enhancement:
- Provided support for Inventor 2023.
11/11/2021
5.0.21300.3359
Enhancement:
- Fixed license issue
- Rotate by and scale by feature
- Swap/flip axis feature
- Properties export feature
05/05/2020
4.5.20098.3208
Enhancement:
- Smart update functionality
- Added option to export hidden entities
- Added support to Autodesk® Inventor® 2021
16/09/2019
4.4.19249.3115
Fixed:
- License issue fixes.
02/05/2019
4.3.19092.2988
Enhancement:
- Upgraded licensing system.
- Added support for Inventor 2020.
09/14/2018
4.2.0.0
Fixed:
- Some planes were exported even if the sketches\planes option is unchecked.
07/17/2018
4.1.0.0
Fixed:
- Positions of some parts were incorrect in 3D PDF Exported from Inventor 2013/2014.
04/26/2018
4.0.0.0
Enhancement:
- Added support for Autodesk Inventor 2019.
07/12/2017
3.0
Enhancement:
- Allow the user to set Preferences and export solids, surfaces and sketches.
- Updated technical support contact details.
03/21/2017
2.4
Enhancement:
- Autodesk® Inventor® 2018 is now supported.
06/01/2016
2.3.0.0
Enhancement:
- Inventor 2017 is now supported.
- Export Surfaces.
- Export Mirror objects.
12/24/2015
1.7.0.0
Enhancement:
- You can now control the quality and size of the exported OBJ model.
- New export option added - Preferences -> Facet Tolerance.
09/21/2015
1.6.0.0
Enhancement:
- Greatly simplified license activation process.
04/17/2015
1.5.0.0
Enhancement:
- Fixed issue with license activation.
04/10/2015
1.4.0.0
Enhancement:
- Supported Inventor version 2016.
- Added support for exporting representation level of detail.
- Removed duplicate entries of the plugin from the “Plugin Load” menu.
04/10/2015
1.3.0.0
Fixed:
- Fixed bug related to a global language.
05/28/2014
1.2.0.0
Enhancement:
- Compatible with Inventor 2015.
- The trial period has changed from 6 months to 10 times.
04/11/2014
1.0.0.0
Enhancement:
- Supports exporting Solid bodies.
- Supports textures and materials.
- Supports face level colors and body level colors.
License Upgrade
Education Discount Enquiry
Mohamed Hassan
11. September, 2024.
"Great plug-in but exported objects are of low resolution even after increasing "precision" from plugin settings."
Pascal David
11. September, 2024.
"Works great, after installing there was a problem but 1 mail to this great company and they solve the problem in no time. Thanks ProtoTech Solutions! "
Eva Mueller
Mechanical Engineer, Linde Engineering (Germany)
"ProtoTech's OBJ-Exporter for Inventor did exactly what I wanted, I was very satisfied with the results. We already use the 3D-pdf-exporter from ProtoTech Solutions and I will pass on my positive experiences. Thank you very much, for developing such a useful plugin!!"
David Scott
Head of Products, Sculptform
" The OBJ exporter for Inventor plugin by Prototech is a very beautiful simple software that always works! "
Griffin Thomas
Director of Digital Engineering, Ace Vision Group, Inc
"ProtoTech Solutions’ OBJ Exporter for Inventor is the most reliable, quick, and easy solution to a high-grade OBJ export from Inventor."
Koen
R&D/Visualization, beMatrix
"ProtoTech has perfectly understand our needs. Results are as expected. Response time is very fast. Small changes or enhancements are perfectly implemented, sometimes even in a couple of hours. Thank you!"
