Single Machine



Two Machine

Locked Licenses by Same User


Single Floating







Mesh Quality

Control to adjust mesh quality from preferences dialog.


1. GLB support.

2. Support mesh instancing and node merging feature.

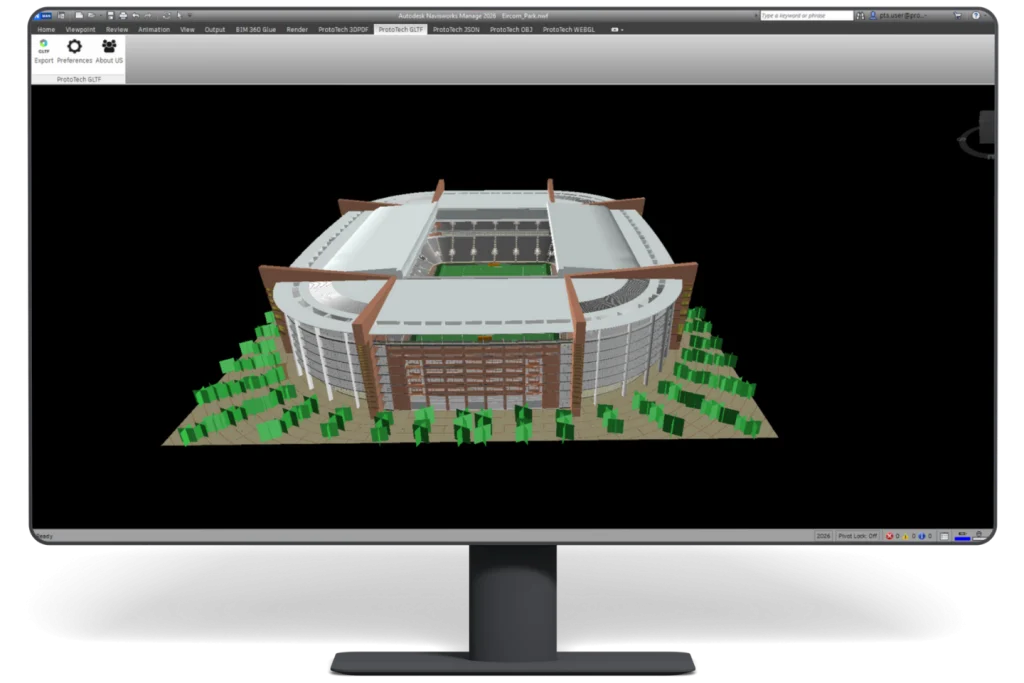

3. Supports Navisworks Manage & Navisworks Simulate Applications.

4. Supports face level colors and face level transparency.

Default Tessellation Quality

Default compression which helps to reduce the file size as much as possible.

Additional Features

1. An option is provided to control the file size and quality by specifying the precision value.

2. glTF version 2.0 supported .

3. Increasing precision value will increase the fineness and accuracy of the model as well as the file size.

4. Control the visibility of elements.

5. Quantization and compression.
