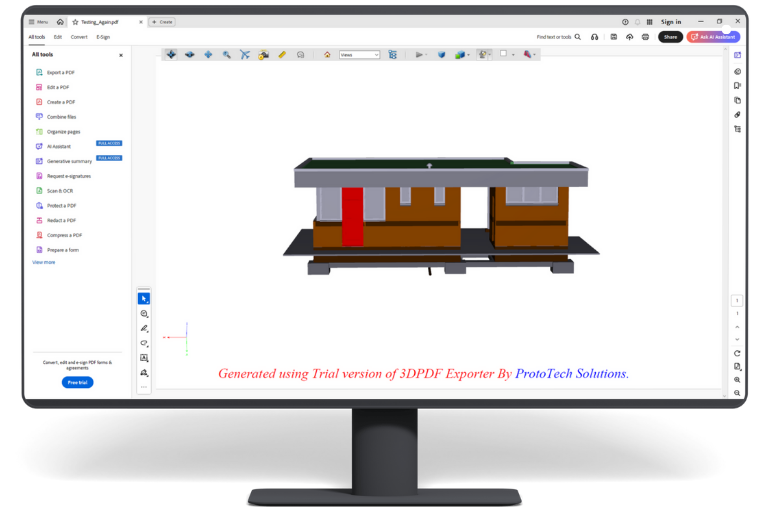

Effortlessly convert

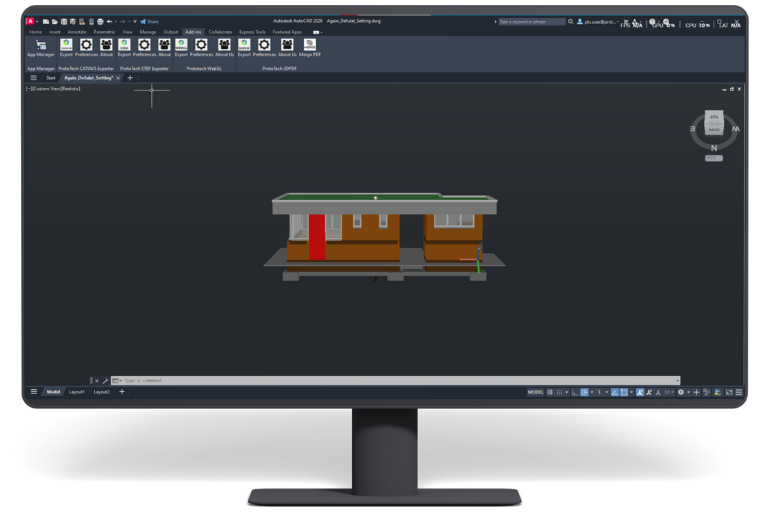

3D PDF Exporter
for AutoCAD
Our Plugins are also Available on Autodesk Store
DOWNLOAD
Trial
No Credit Card Required.
Locked-License
Single Machine
$69
Locked Licenses by Same User
Two Machine
$120
Two Machine Locked License, by the Same User
Locked-License
Single Floating
$249
Single Floating License
Locked-License
Automation
$599
Automation Licence
Advantages of Automation Licence are:
Enhance collaboration and presentation
Features
Mesh Quality
Control to adjust mesh quality from preferences dialog.
Encrypt PDF
Password-protect the exported PDF file.
Default Tessellation Quality
Password-protect the exported PDF file.
Template Designer
Embed 3D Model to your existing PDF.
Additional
Info.
3D PDF Exporter for AutoCAD Version History
30/07/2024
6.0.24164.3532
Enhancement:
- Supported on AutoCAD 2025.
17/04/2023
5.1.21243.3359
Fixed:
- Fixed license issue.
- Supported on AutoCAD 2024.
23/03/2021
4.8.21056.3309
Fixed:
- Fixed the issue of the 2D Wire Frame Exported Model not visible.
- Supported 'Light Power control' functionality.
- Added 'Export Toolbar' option.
- Added 'World Axes control' option.
- Added 'Open Model Tree control' option.
- Added 'Default Navigation Type' option.
- Added 'Full Screen' option.
- Added support for Render Mode and Light Type.
28/04/2020
4.7.20093.3208
Enhancement:
- Added smart update functionality.
- Â Added support to AutoCAD 2021
24/01/2020
4.6.20017.3182
Enhancement:
- Supported flange and inline pipe asset in Autodesk® Plant 3D®.
- Support large file export from AutoCAD.
- Added license reset button.
16/09/2019
4.5.19249.3115
Fixed:
- License issue fixes.
06/06/2019
4.4.19142.3040
Enhancement:
- Upgraded licensing system.
03/04/2019
4.3.0.0
Enhancement:
- Added support for AutoCAD 2020.
- Upgraded licensing system.
24/10/2018
4.2.0.0
Fixed:
- Wire entities were exported at incorrect positions.
14/09/2018
4.1.0.0
Fixed:
- Model was not getting exported sometimes if visual style was other than "Realistic".
15/05/2018
4.0.0.0
Enhancement:
- Added support for AutoCAD 2019.
- Added support of PDF template.
28/06/2017
3.0
Enhancement:
- Exporting Layer wise assembly tree / Browser.
- Added support for Autodesk® AutoCAD® 2018.
20/07/2016
2.2
Enhancement:
- AutoCAD 2017 is now supported.
- Added support to disable measurement tool in exporter 3D PDF.
- Â User can add external files as attachments in exported 3D PDF.
- Autodesk® AutoCAD® Civil 3D® entity supported.
- Resolved transformation issue for block references.
- Improved transformation and colors of nested block references.
- Model tree in the exported 3D PDF file is now based on layers in AutoCAD file.
04/11/2014
1.1
Fixed:
- User who has different local settings (e.g. comma character as the decimal separator) can now export valid PDF files.
- The units are now properly exported.
- Active view is now properly exported.
- Fixed issue with license activation.
- Supports AutoCAD Version 2016.
- Greatly simplified license activation process.
