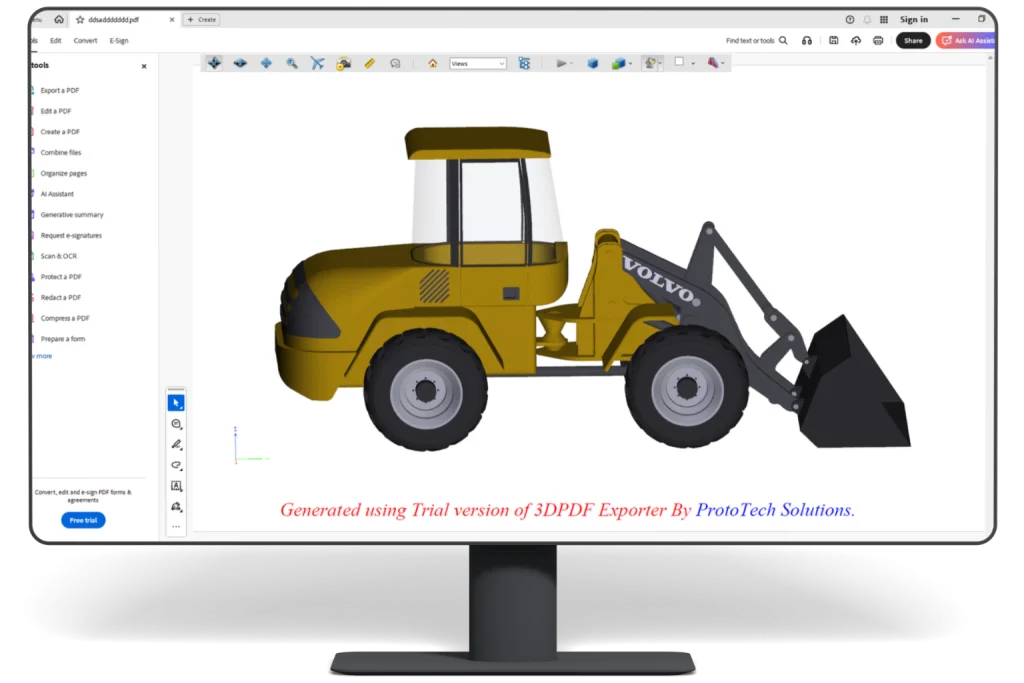

Effortlessly export
3D PDF Exporter
for Revit
Our Plugins are also Available on Autodesk App Store
Note: Compatible only with Windows 10 and Windows 11
DOWNLOAD
Trial
No Credit Card Required.
Locked-License
Single Machine
$99
Locked Licenses by Same User
Two Machine
$180
Two Machine Locked License, by the Same User
Transferable License
Single Floating
$589
Single Floating License
Locked-License
Automation
$489
Automation Licence
Advantages of Automation Licence are:
streamline project workflows
Features
Mesh Quality
Control to adjust mesh quality from preferences dialog.
Encrypt PDF
Password-protect the exported PDF file.
Exports
1. Properties.
2. Supporting documents like STL, STEP file etc as attachment to the 3DPDF.
3. Model assembly tree.
Additional Features
1. Embed 3D Model to your existing PDF.
2. Supports face level colors.
3. Option to control the file size and quality by specifying the precision value.
4. Rebar Entity Supported.
Additional
Info.
3D PDF Exporter for Revit Version History
06/09/2024
6.0.24176.3533
Enhancement:
- Added 2025 support
28/11/2023
6.0.23241.3495
Enhancement:
- Animate around Axis
- Rotate by
- Support Revit 2024
- Merge PDF
- Preview images
- Point Cloud
- Updated UI
15/06/2023
5.2.21244.3359
Enhancement:
- Support for Revit 2024.
06/09/2021
5.2.21244.3359
Enhancement:
- License fixes
- Support for Revit 2023
13/08/2021
5.1.21190.3341
Enhancement:
- Support of Revit 2022
- PDF Password Feature
16/03/2021
4.8.21062.3308
Enhancement:
- Added Export hidden entity functionality.
- Added sketch support.
- Supported 'Light Power control' functionality.
- Added 'Export Toolbar' option.
- Added 'World Axes control' option
- Added 'Open Model Tree control' option.
- Added 'Default Navigation Type' option.
- Added 'Full Screen' option.
22/10/2020
4.7.20260.3249
Enhancement:
- Smart update functionality.
- Added support to Revit 2021.1 version.
- Added 'light type' and 'render mode' options.
04/02/2020
4.6.20020.3182
Enhancement:
- Added license reset functionality.
09/04/2019
4.5.19249.3115
Fixed:
- License issue fixes.
06/06/2019
4.4.19134.3040
Enhancement:
- Watermark Support.
- Upgraded licensing system.
- Position of the 3D model in template corrected.
25/04/2019
4.3.0.0
Enhancement:
- Added support for Autodesk Revit 2020.
- Fixes to the license system
- Model tree hierarchy was incorrect in 3D PDF.
- Precision value was not fixed for Default tessellation option.
- Options 'Export Properties ' and 'Disable Selection' were not in sync.
- Revit main window was not parent window for some messages from Exporter.
- PDF Export was failing, if elements with NULL 'category' were present in RVT file.
11/15/2018
4.2.0.0
Enhancement:
- Export Views from Revit in 3DPDF.
- Allow the user to disable any user selections in 3DPDF.
- Support for Default tessellation.
- Supported Texture scaling.
- Settings in preferences dialog were not retrieved correctly.
09/14/2018
4.1.0.0
Enhancement:
- Added support for RPC entities.
- Added option for the user about opening the file after export.
- Disable measurement was not working.
- PDF attachments were not exported if templates are used.
05/29/2018
4.0.0.0
Enhancement:
- Added support for Autodesk Revit 2019.
- Added support for Textures.
- Colors were not getting exported for specific models.
03/8/2018
3.1.0.0
Enhancement:
- Added support for the user-defined page size of 3D PDF.
- Rebar entities were not exported.
- Application was crashing for some types of pdf templates
- 3D PDF data cannot be placed on any page of template pdf
07/21/2017
3.0.0.0
Enhancement:
- Added support for Revit 2018.
- Updated technical support contact details
10/20/2016
2.4.0.0
Enhancement:
- Added ability to export Revit Link model.
10/05/2016
2.3.0.0
Enhancement:
- Supported Revit version 2017.
- Option to disable measurement tool in exported 3D PDF. This helps protect your model IP.
- Option to add external files of any format(e.g. quotation, specs etc.) as attachments in exported 3D PDF.
- Problem of colors not getting exported for some models.
10/14/2015
1.7.0.0
Enhancement:
- Greatly simplified license activation process.
07/29/2015
1.6.0.0
Fixed:
- Fixed issue with license activation.
06/08/2015
1.5.0.0
Enhancement:
- Added support for the hierarchical model tree into PDF.
- Added export of property information for every element.
- Measurement units now reflect correctly.
- Accuracy of element selection in exported PDF model.
04/20/2015
1.4.0.0
Enhancement:
- Supported Revit version 2016.
02/20/2015
1.3.0.0
Enhancement:
- Reduction is the output file size by magnitudes (by 10+ times).
- Transformation for wire bodies.
02/09/2015
1.2.0.0
Enhancement:
- Added instancing support (reduces exported file size).
11/11/2014
1.1.0.0
Fixed:
- User who has different local settings (e.g. comma character as the decimal separator) can now export valid PDF files.
06/13/2014
1.0.0.0
Enhancement:
- Supports colors.
- Supports wired bodies.
- Creates encrypted and secured pdf files.
- Provides 10 trials.
